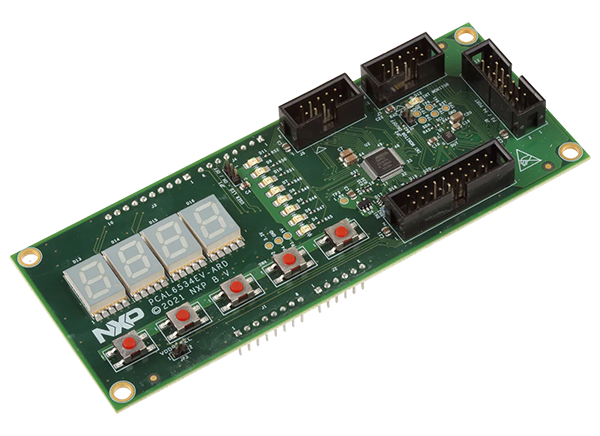

NXP Semiconductors PCAL6534EV 34-Bit GPIO Arduino Shield
NXP Semiconductors PCAL6534EV 34-Bit GPIO Arduino Shield (PCAL6534EV-ARD) is a demonstration and development platform for the PCAL6534 Ultra-Low Voltage I/O Expander. The PCAL6534 provides remote I/O expansion for most microcontrollers using a Fast-mode Plus (Fm+) I2C-bus interface. The PCAL6534 has an ultra-low-voltage interface for direct connection to microcontrollers. This device provides a simple solution for when additional I/Os are needed while keeping interconnections to a minimum.
The NXP Semiconductors PCAL6534EV 34-Bit GPIO Arduino Shield serves as a daughterboard that can be connected through an Arduino port to Arduino-compatible development boards for testing and measuring the characteristics of the PCAL6534. The PCAL6534EV-ARD Shield communicates through the Arduino port with the host device via the Fast-mode I2C-bus. Alongside the I2C-bus, three additional digital lines allow the development board to control the device through the same Arduino port. The PCAL6534EV-ARD Shield is also powered via the Arduino port.
The PCAL6534EV 34-Bit GPIO Arduino Shield is designed to work with the i.MX RT1050 EVK Evaluation Kit (MIMXRT1050-EVKB), the LPCXpresso55S69 Development Board (LPC55S69-EVK), or the i.MX 8M Mini Evaluation Kit (8MMINILPD4-EVKB). If the i.MX 8M Mini Evaluation Kit is used, the Arduino Interposer Board (IMX8MMINI-IARD) is also required.
Features
- PCAL6534 Ultra-Low Voltage I/O Expander
- I/O connectors for external access to IC input-output pins
- Five user switches connected to I/O pins of the IC
- Eight user LEDs connected to I/O pins of the IC
- On-board LED display controlled from the I/O pins of the IC
- Equipped with Arduino Uno R3 port for direct connection with Arduino devices
- Graphic User Interface
Resources
Required Equipment
- i.MX RT1050 EVK Evaluation Kit (MIMXRT1050-EVKB), the LPCXpresso55S69 Development Board (LPC55S69-EVK), or i.MX 8M Mini Evaluation Kit (8MMINILPD4-EVKB) and Arduino Interposer Board (IMX8MMINI-IARD)
- USB cable
- PC with Microsoft Windows and an available USB port
Supported Devices
NXP Semiconductors PCAL6534 34-bit General Purpose I/O Expander
Offers remote GPIO expansion for most MCUs via the Fm+ I2C-bus interface, with Agile I/O features.
Related Development Tools
NXP Semiconductors i.MX RT1050 EVK Evaluation Kit (MIMXRT1050-EVKB)
Development platform designed to allow full evaluation of the NXP i.MX RT1050 Crossover Processor.
NXP Semiconductors LPCXpresso55S69 Development Board (LPC55S69-EVK)
Evaluates LPC55S6x MCU and features an onboard debug probe, audio subsystem, and accelerometer.
NXP Semiconductors Arduino® Interposer Board (IMX8MMINI-IARD)
Provides Arduino compatibility to the i.MX 8M Mini Evaluation Kit (8MMINILPD4-EVKB).

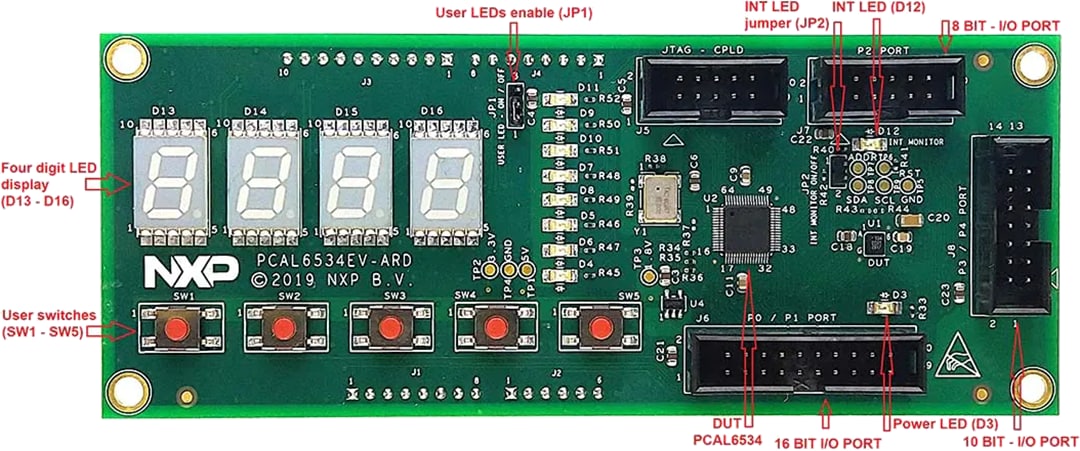

Board Layout
