Infineon Technologies 3kW 50V Server & Data Center PSU Reference Design
Infineon Technologies 3kW 50V Server and Data Center PSU (Power Supply Unit) Reference Design (EVAL_3KW_50V_PSU) is a complete power supply targeting the Open Compute V3 rectifier specifications. The PSU comprises a front-end AC-DC bridgeless totem pole converter followed by a back-end DC-DC isolated half-bridge LLC converter. The front-end totem pole converter provides Power Factor Correction (PFC) and Total Harmonic Distortion (THD). The LLC converter provides safety isolation and a tightly regulated output voltage.
The measured peak efficiency of the complete Infineon Technologies 3kW 50V Server & Data Center PSU Reference Design at 230VAC is 97.5%, not including the internal fan, and 97.4%, including the internal fan. The overall outer dimensions of the Infineon Technologies 3kW 50V Server and Data Center PSU are 73.5mm x 520mm x 40mm, which yields a power density in the range of 32W/inch³ (1.95W/cm³).
Features
- Key components
- IMZA65R048M1H 650V 48mΩ CoolSiC™
- IPW60R017C7 600V 17mΩ CoolMOS™
- IPW60R024CFD7 600V 24mΩ CoolMOS
- 1EDB8275F, 1EDB9275, and 2EDF7275F EiceDRIVER™ for CoolMOS, CoolSiC, and CoolGaN™
- ICE2QR2280G Flyback Controller
- XMC4200-F64k256AB Microcontroller
- IFX91041 Step-Down Voltage Regulator
- Complete power supply reference design targeting the OCV3 rectifier specifications
- Very high peak efficiency
- Bridgeless totem-pole PFC with CoolSiC™
- Half-bridge LLC with CoolMOS™ and OptiMOS™
- Full digital control with XMC™ microcontrollers
- Compact 73.5mm x 520.0mm x 40.0mm solution
On The Board
Infineon Technologies 650V CoolSiC™ M1 Trench Power MOSFETs
Silicon Carbide MOSFETs offer reliable and cost-effective performance in a TO247 3–pin package.
Infineon Technologies CoolMOS™ C7 Power MOSFETs
Low RDS(on)/package with low switching losses, efficiency improvements over the full load range.
Infineon Technologies XMC™4000 Series 32-Bit ARM® Cortex®-M4 MCUs
Combines a leading-edge peripheral set with an industry-standard ARM® Cortex®-M4 core.
Infineon Technologies Quasi Resonant CoolSET™ Power ICs
Optimized for off-line switch power supplies in cascode configurations.
Infineon Technologies 2EDi EiceDRIVER™ Gate Driver ICs
2-channel, functional and reinforced MOSFET isolated gate drivers for high-performance half-bridges.
Infineon Technologies EiceDRIVER™ Isolated & Non-Isolated Gate Drivers
Gives the optimized low and high-voltage gate driver solutions for MOSFETs, IGBTs, and IGBT modules.
Infineon Technologies 1-Channel EiceDRIVER™ MOSFET Gate Driver ICs
The crucial link between control ICs, powerful MOSFET, and GaN switching devices.
Infineon Technologies CFD7 CoolMOS™ MOSFETs
Ideal for resonant high power topologies and feature the latest superjunction MOSFET technology.

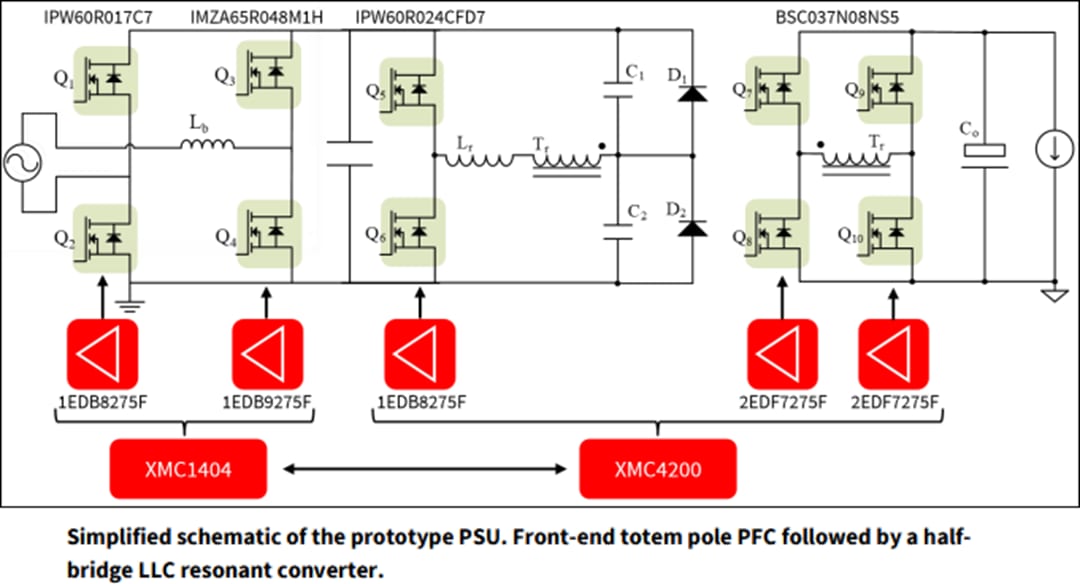

Simplified Schematic
