Diodes Incorporated DMN3012LEG MOSFET
Diodes Incorporated DMN3012LEG MOSFET is a 30V synchronous N-channel enhancement-mode MOSFET with low on-resistance and fast switching speed. This RoHS-compliant MOSFET offers low input capacitance and improved reliability with 100% Unclamped Inductive Switch (UIS) ruggedness tested at production. The DMN3012LEG MOSFET features a Lateral Diffused MOS (LDMOS) design that reduces power losses and is optimized for high power density, high efficiency, and high-frequency capability. This MOSFET is ideal for DC-DC converters and high-efficiency power management applications.
Features
- 100% Unclamped Inductive Switch (UIS) test in production
- Low on-resistance
- Low input capacitance
- Fast switching speed
- Lead-free finish
- 95% peak power efficiency
- Improved performance at light load
- Reduced system temperature
- Improved reliability
- RoHS compliant
Specifications
- 12mΩ drain-source resistance
- -55°C to 150°C operating temperature range
- 2.2W power dissipation
Applications
- DC-DC converters
- Power management functions
- Optimized for 5V gate drive applications

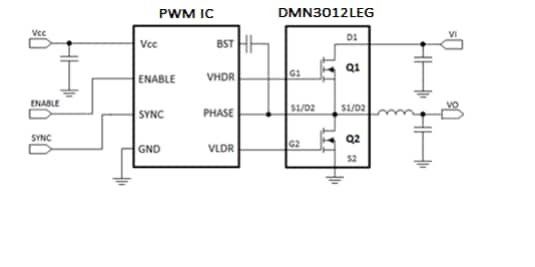

Circuit Diagram

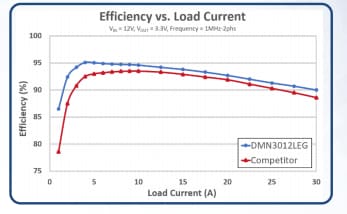

Performance Benchmark Diagram
