Texas Instruments MSP430F2xx Ultra-Low Power 16-bit MCUs

Texas Instruments MSP430F2xx Ultra-Low Power 16-bit MCUs are used for a wide range of applications, including consumer electronics, data logging applications, portable medical instruments, and more.

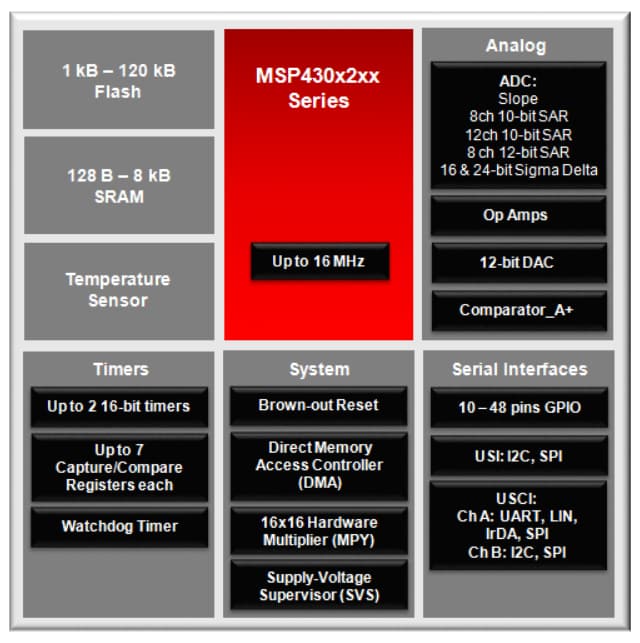

The MSP430F2xx Series architecture 16-bit RISC CPU, is combined with five low-power modes, and optimized to achieve extended battery life in portable measurement applications. The AFE2xx sub-family is ideal for eMetering applications.

Features

Up to 16MHz CPU speed
1.8V to 3.6V operation
Up to 120kB Flash
Up to 8kB RAM
Ultra-fast wake-up from standby mode in <1µs
Wide range of high-performance analog and intelligent digital peripherals

0.1µA RAM retention
0.3µA Standby mode (VLO)
0.7µA real-time clock mode
220µA/MHz active
Features AFE2xx devices, which include 24-bit sigma-delta A/D converters, hardware multipliers, and other peripherals for energy metering applications
