Texas Instruments DLP480REEVM DMD Evaluation Module (EVM)
Texas Instruments DLP480REEVM DMD Evaluation Module (EVM) can accelerate the prototyping time of a DLP 0.48-inch WUXGA system when combined with the DLPC4430EVM. The Texas Instruments DLP480REEVM provides a solution for evaluating the 0.48-inch WUXGA digital micromirror device (DMD), which is designed to pair with the DLPC4430EVM and can display SPLASH, test patterns, and video from the HDMI source on the DMD.
Features
- WUXGA (1920 x 1200) display resolution
- 5.4µm Micromirror pitch
- ±17° Micromirror tilt (relative to flat state)
- Bottom illumination
- 2x LVDS input data bus

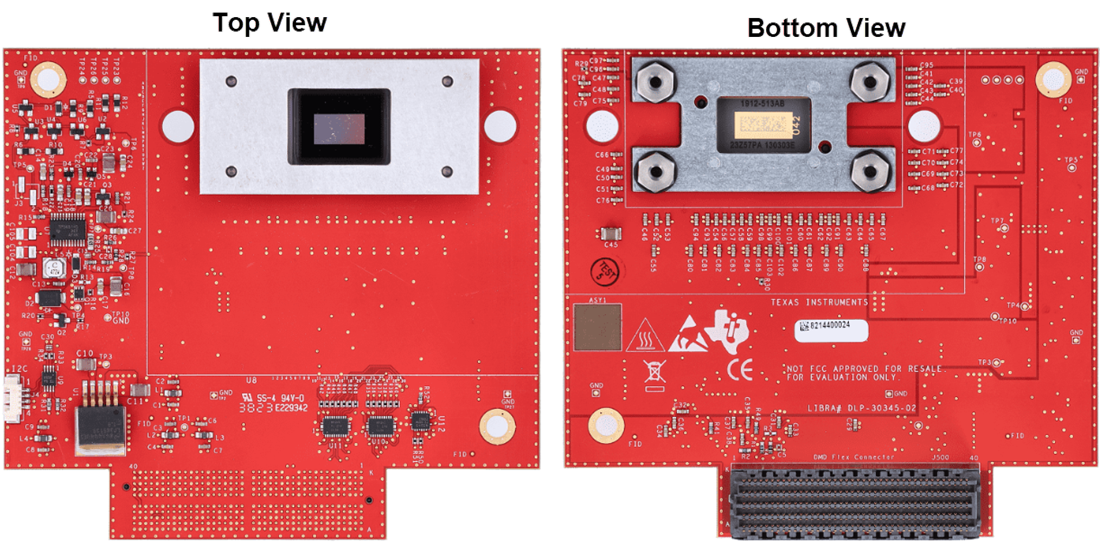

Board Layout
Related Development Tool
Texas Instruments DLPC4430EVM Controller Evaluation Module (EVM)
When combined with other EVMs, it can accelerate the prototyping time of the DLP various systems.
