Nexperia BATxxGW Schottky Barrier Diodes

Nexperia BATxxGW Schottky Barrier Diodes are AEC-Q101 qualified and designed with an integrated guard ring for stress protection. The planar Schottky barrier diodes are encapsulated in a SOD123 small SMD plastic package. These BATxxGW Schottky diodes come in two types BAT46GW and BAT54GW. The BAT46GW is designed for high-speed switching, while the BAT54GW is designed for ultra-high speed switching. These diodes also consist of two variants BATxxGWJ and BATxxGWX which feature low capacitance and a small SMD plastic package. Typical applications include line termination and automotive applications.

Features

  • Low forward voltage
  • Low leakage current
  • Reverse voltage
  • Low capacitance
  • Small SMD plastic package
  • AEC-Q101 qualified

Applications

  • Line termination
  • Automotive applications
  • Voltage Clamping
  • Reverse polarity protection

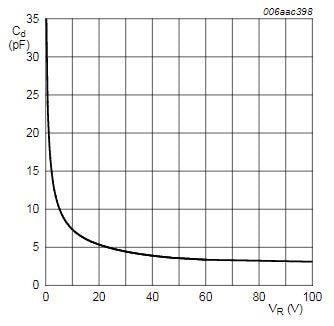

Diode capacitance as a function of reverse voltage:

Nexperia BATxxGW Schottky Barrier Diodes
View Results ( 4 ) Page
N.º de artículo Hoja de datos Descripción
BAT54GWJ BAT54GWJ Hoja de datos Rectificadores y diodos Schottky The factory is currently not accepting orders for this product.
BAT46GWJ BAT46GWJ Hoja de datos Rectificadores y diodos Schottky The factory is currently not accepting orders for this product.
BAT46GWX BAT46GWX Hoja de datos Rectificadores y diodos Schottky RECT 100V .25A SM SC HOTTKY
BAT54GWX BAT54GWX Hoja de datos Rectificadores y diodos Schottky RECT 30V .2A SM SCHO TTKY
