Mikroe ISO ADC Click

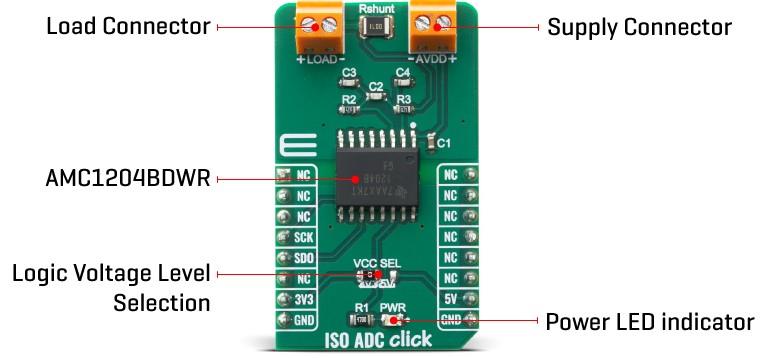

Mikroe ISO ADC Click is a current-shunt measurement device with an isolated delta-sigma modulator. The Mikroe ISO ADC Click board uses the Texas Instruments AMC1204BDWR to measure a shunt resistor's small signal across an isolated barrier. ISO ADC Click contains a shunt resistor typically used to sense currents in motor control inverters, green energy generation systems, and other industrial applications.
Features
- AMC1204BDWR onboard
- SPI interface
- mikrobus compatibility
- M (42.9mm x 25.4mm) Click board size
- 3.3V or 5V input voltage
Applications
- Sense currents in motor control inverters
- Green energy generation systems
- Industrial
Overview
