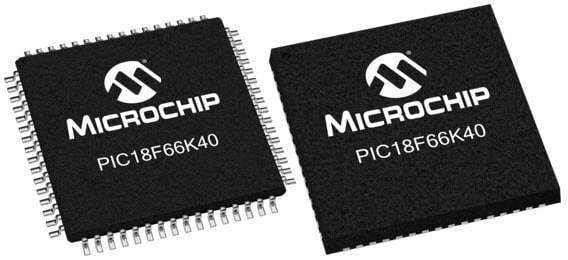

Microchip Technology PIC18F66K40 Microcontrollers combine large Flash/EE/RAM memory, rich peripheral integration, eXtreme Low Power (XLP), and 5V support to suit a variety of general purpose applications. These 64-pin devices deliver Core Independent Peripherals such as CWG, WWDT, CRC/Memory Scan, Hardware CVD, Zero-Cross Detect and Peripheral Pin Select, providing for increased design flexibility and lower system cost.
Features
PIC18 Core with 83 Instructions, 31 Stack Levels
Internal 64MHz oscillator
47x 10-bit ADC channels
1x 5-bit DAC
3x Comparators
Fixed Voltage Reference (FVR) module: 1.024V, 2.048V and 4.096V output levels
Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders
1x Zero-Cross Detect
2x I2C/SPI
5x EUSART with LIN support
CRC with Memory Scan
Windowed Watchdog Timer (WWDT)
1x Hardware Limit Timer (HLT)
1x Complementary Waveform Generator
2x standalone 10-bit PWM modules
5x Capture/Compare/PWM modules
Five 8-bit Timers/Counters
Four 16-bit Timers/Counters
1x Hardware Limit Timer (HLT)
Extended Watchdog Timer (WDT)
2x Signal Measurement Timer (SMT)
eXtreme Low Power (XLP) technology
Doze, Idle, and Sleep Power Saving Operating Modes
Sleep mode: 50nA @ 1.8V, typical
Active mode: 32uA/MHz @ 1.8V, typical
Low Current Power-on Reset (POR)
Brown-out Reset (BOR)
Low-Power BOR (LPBOR)
Peripheral Pin Select
In-Circuit Debug
Integrated On-Chip
In-Circuit Serial Programing (ICSP)
Datasheet
