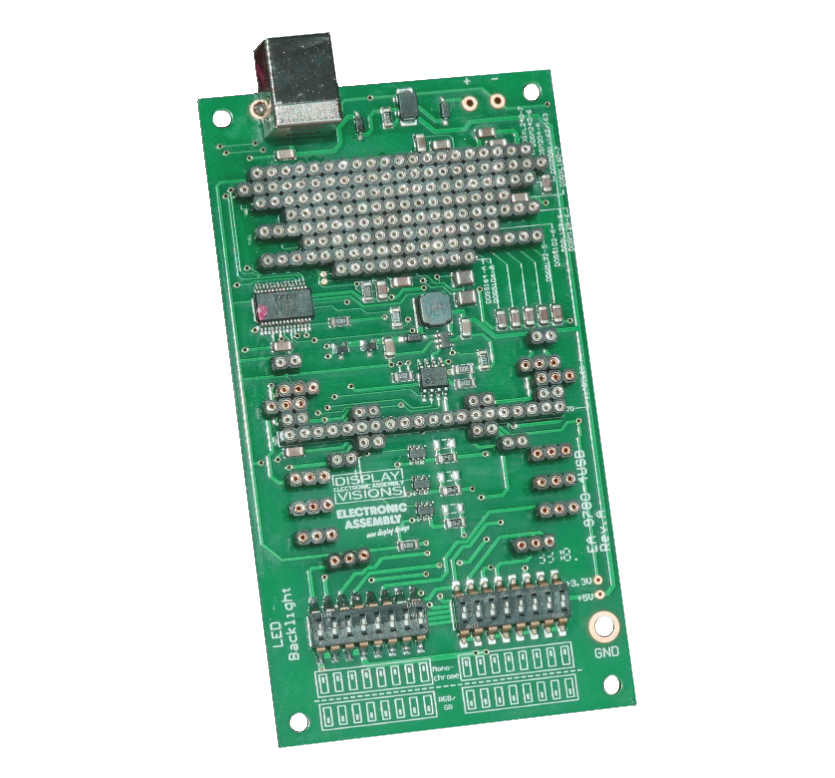

DISPLAY VISIONS 9780-4USB Development Board
DISPLAY VISIONS 9780-4USB Development Board is a simple plug-and-play solution for pin-connected, chip-on-glass LCDs. It readily accepts 2.54mm connector pins from a display into the development board's socket strips.
The DISPLAY VISIONS 9780-4USB Development Board uses the free LCD simulator software, which allows all displays and backlights to be tested quickly. It is a cost-effective solution that does not require proprietary hardware or software development.
Features
- Integrated LED driving circuit (switch LED backlight ON/OFF)
- USB cable (power supply)
- All LCDs and backlights from the EA DOGxxx series can be evaluated
- Plug-and-Play comes with FREE software simulator (no hardware or software knowledge is necessary)
- Includes demo text and demo pictures (custom text and pictures (BMP) are also supported)
- Can connect to an external microcontroller
- -20°C to +70°C Operating temperature
Applications
- Wearables
- Low-power applications
- Handheld devices
- Medical devices
- Testing and measurement/control equipment
- Defense applications
- Vehicle communication interfaces
- Oil and gas equipment
- Flow meters and volume meters
- Low-power wireless communication and telemetry solutions
- Low-power industrial automation solutions
- Industrial controls and machines
- Laboratory equipment
- Vacuum gauges
- Level transmitters
- Wired and wireless gas detection and monitoring systems
- High-end ignition systems
- Temperature monitoring solutions
- IoT systems
- Access control systems
- Miniature centrifuge
- Ozone generator
- UV Cabinet
- Solar power invertor
- Electric actuator
Videos
Associated Products
DISPLAY VISIONS DOGS104-A Display Modules & Backlights
High-contrast LCD supertwist display operating on a low 3.3V without auxiliary power.
DISPLAY VISIONS EA-DOGS102 Graphic LCDs
Compact, low-power graphic display modules ideal for compact, handheld applications.
EA-DOG Series
Additional Resources
• Download the free EA LCD Simulator Software
• Plug the display into the EA 9780-4USB development board
• Connect the EA 9780-4USB development board to the PC using the USB cable
• Write text or select graphics, display will show the content
