Comchip Technology RS2x-HF SMD Fast Recovery Rectifiers
Comchip Technology RS2x-HF SMD Fast Recovery Rectifiers offer a reverse voltage range of 50V to 1000V. These rectifiers incorporate a glass passivated chip junction, providing fast reverse recovery time. The RS2x-HF rectifiers feature 2A forward current, a low-profile package, and 22pF typical junction capacitance. They are easy to pick and place and suitable for surface-mounted applications.
Features
- Glass passivated chip junction
- Low profile package
- Easy to pick and place
- Fast reverse recovery time
- RoHS compliant
- Halogen-free
Specifications
- 50V to 1000V maximum repetitive peak reverse voltage range (VRRM)
- 2A maximum average forward rectified current at TC=125°C (IF(AV))
- 22pF typical junction capacitance at VR=4V and f=1MHz
- -55°C to 150°C operating temperature range
Performance Graphs

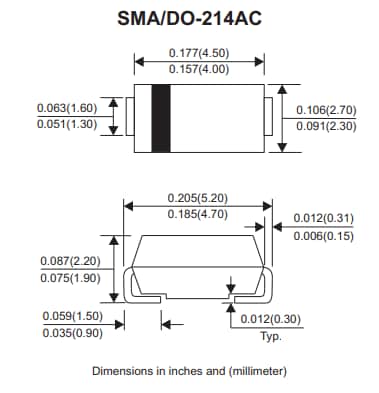

Dimensions (Inches/mm)
