Analog Devices Inc. EVAL-AD7124-8-PMDZ Evaluation Kit

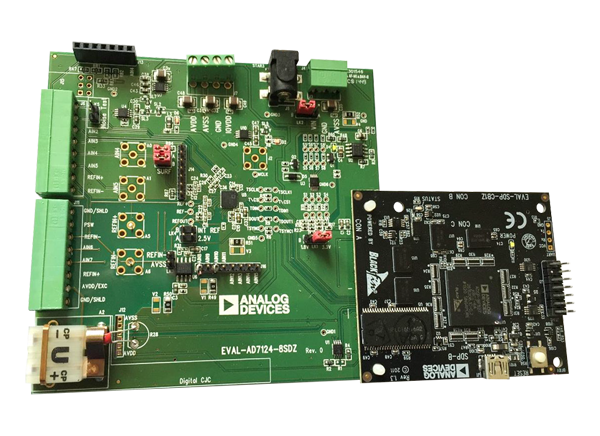

Analog Devices Inc. EVAL-AD7124-8-PMDZ Evaluation Kit is designed to evaluate the low-power, low-noise 24-bit Σ-Δ AD7124-8 Analog-to-Digital Converter (ADC) and all its features and functionalities. The evaluation board connects to the USB port of a PC via the EVAL-SDP-CB1Z motherboard. A 7V to 9V external supply is regulated to 3.3V to supply the AD7124-8 ADC and support all necessary components. The AD7124-8 EVAL+ software fully configures the AD7124-8 device register functionality and provides DC time-domain analysis. This analysis can be obtained in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation.
Features
- Full-featured evaluation board for the AD7124-8
- PC control in conjunction with the system demonstration platform (EVAL-SDP-CB1Z)
- PC software for control and data analysis (time domain)
- Standalone capability
Applications
- Temperature measurement
- Pressure measurement
- Industrial process control
- Instrumentation
- Smart transmitters
Required Equipment
- EVAL-SDP-CB1Z System Demonstration Platform
- DC signal source
- USB cable
- PC running Windows with USB 2.0 port
Associated ADC Front-end Modules
Analog Devices Inc. AD7124-4/-8 Analog Front Ends
Low noise, low power, 24-Bit, Sigma-Delta ADC with PGA and Reference.
Related Products
Analog Devices Inc. EVAL-SDP-CB1Z System Demonstration Platform
Provides a means of communicating w/PC from the system under evaluation.
